Our Fleet » ATLAS 9538177

ATLAS

GSI 37K DWT

FLAG:

BAHAMAS

PORT OF REGISTRY: NASSAU
OWNERS: Dove Seacarriers Limited
MANAGERS: SUPER-ECO TANKERS MANAGEMENT INC.
CALL SIGN: C6AS2
IMO NUMBER: 9538177
YEAR BUILT: 2014
PLACE BUILT: GUANGZHOU SHIPYARD INTERNATIONAL CO. LTD.
TYPE OF SHIP: CHEMICAL TANKER
HULL: DOUBLE HULL
Year Built 2014
Place Built GUANGZHOU SHIPYARD INTERNATIONAL CO. LTD.
Type Of Ship CHEMICAL TANKER
Hull DOUBLE HULL

Summer Deadweight 37886.5
Gross Tonnage 25269
Net Tonnage 10334
L.O.A. 183.17
L.B.P. 178.5
Beam 31.031
Depth 16
Summer Draft 10.5
TPC 52.7
Cubic Capacity Incl. Slops 98% 44716
Freeboard (S. DRAFT) 5.515
Freeboard (SBT) 9.197

Parallel Body Length (Light Condition) 57.7
Keel To Mast 42.23
Crane SWL 1 X 10 Tons
Tanks Coated YES
Coating PHENOLIC EPOXY COATING
Type of Cargo Heating System HEATING COILS
Crude Oil Washing YES
Inert Gas System YES
Segregated Ballast Tanks YES
No of Manifolds 6 x 14”
Type Of Manifolds CAST STEEL BUTTERFLY
Distance Rail To Manifolds 4,600 Millimetres
Distance Bow To Manifolds 92.63 Metres
Distance Deck To Center Of Manifolds 2.1 mtrs
Manifold Height of sea level upon completion of discharging 11.27 mtrs


 NUMBER / SIZE OF REDUCERS

 11 x 406/355mm  (16/14")
 2 x 406/305mm  (16/12")
 4 x 355/305mm  (14/12")
 4 x 355/355mm  (14/8")
 5 x 355/254mm  (14/10")


Summer Deadweight 52420
Gross Tonnage 30240
Net Tonnage 15650
L.O.A. 183.20 mtrs
L.B.P. 176.00 mtrs
Beam 32,23 mtrs
Depth 18,20 mtrs
Summer Draft 13,02 mtrs
TPC 55,62 MT
Cubic Capacity Incl. Slops 98% 56,353.92m3
Freeboard (S. DRAFT) 5,213 mtrs
Freeboard (SBT) 10.846 mtrs

Parallel Body Length (Light Condition) 82.79 mtrs
Keel To Mast 47.76 mtrs
Crane SWL 1 X 10 Tons
Tanks Coated YES
Coating PHENOLIC EPOXY COATING

Type of Cargo Heating System HEATING COILS
Crude Oil Washing YES
Inert Gas System YES
Segregated Ballast Tanks YES
No of Manifolds 7 x 14”
Type Of Manifolds CAST STEEL BUTTERFLY
Distance Rail To Manifolds 4,290 Millimetres
Distance Bow To Manifolds 91.96 Metres
Distance Deck To Center Of Manifolds 2.1 mtrs
Manifold Height of sea level upon completion of discharging 12.95 mtrs



NUMBER / SIZE OF REDUCERS

5 x 355/254mm (14/10")
5 x 355/305mm (14/12")
5 x 355/203mm (14/8")
12 x 355/406mm (14/16")
2 x 254/406mm (10/16")

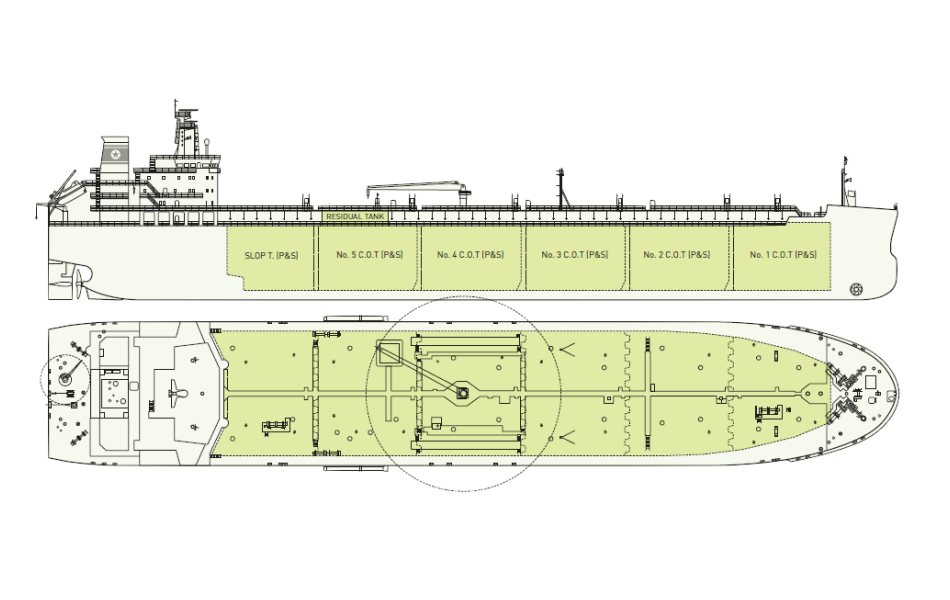

NUMBER OF CARGO OIL TANKS 5 WING CARGO
  OIL TANKS & 2 SLOP TANKS


NUMBER OF SEGREGATIONS 6

CARGO PUMPS 10 CENTRIFUGAL DW 500m3/HR
  2 CENTRIFUGAL DW 300m3/HR
  CENTRIFUGAL DW: 100m3/HR

CAPACITY OF CARGO PUMPS 3000 Cu. Metres/Hour

MAIN ENGINE DMD MAN B8W 5S50MZ-BMK 9.2 Tier II
B.H.P. 9250
TANK CAPACITY
100% M3
CAPACITY
98% M3
No 1 CARGO TANK (P) 2937.5 2878.8
No 1 CARGO TANK (S) 2924.6 2866.2
No 2 CARGO TANK (P) 4173.5 4090.1
No 2 CARGO TANK (S)  4173.5 4090.1
No 3 CARGO TANK (P) 4279.4 4193.9
No 3 CARGO TANK (S) 4279.4 4193.9
No 4 CARGO TANK (P) 4279.7 4194.2
No 4 CARGO TANK (S) 4279.7 4194.2
No 5 CARGO TANK (P)  4242.3 4157.5
No 5 CARGO TANK (S) 4242.3 4157.5
SLOP TANK (P)  3373.9 3306.5
SLOP TANK (S) 3373.9 3305.9
GRAND TOTAL 46559.7 45628.8
GROUP TANKS CAPACITY
100% m3
GROUP 1 1P&1S 12097,2
GROUP 2 2P&2S 13143,2
GROUP 3 3P&3S 13831,8
GROUP 4 4P&4S 14502,1
GROUP 5 5P&5S 8484.6
GROUP 6 SLOP P&S 6747.8

TOTAL CAPACITY BALLAST (M3) 17710.5
TOTAL CAPACITY FUEL OIL (M3) 1174.4
TOTAL CAPACITY DIESEL OIL (M3) 175.8
TOTAL CAPACITY FRESH WATER 398.1
