ANTARES

GSI 37K DWT

IMO 9723019

9723019
9723019
9723019
9723019
9723019
Vessel’s Name
ANTARES
Vessel’s Classification Society
D.N.V.
Vessel’s P&I Club
U.K. P&I CLUB
Flag
BAHAMAS
Port Of Registry
NASSAU
Owners
Cormorant marine Limited
Managers
SUPER-ECO TANKERS MANAGEMENT INC.
Call Sign
C6BD4
IMO Number
9723019
Year Built
2015
Place Built
GUANGZHOU SHIPYARD INTERNATIONAL CO. LTD.
Type Of Ship
CHEMICAL TANKER
Hull
DOUBLE HULL
Summer Deadweight
37886.5
Gross Tonnage
25269
Net Tonnage
10334
L.O.A.
183.17
L.B.P.
178.5
Beam
31.031
Depth
16
Summer Draft
10.5
TPC
52.7
Cubic Capacity Incl. Slops 98%
6480.1
Freeboard (S. DRAFT)
5.515
Freeboard (SBT)
9.197
Parallel Body Length (Light Condition)
57.7
Keel To Mast
42.23
Crane SWL
1 X 10 Tons
Tanks Coated
YES
Coating
PHENOLIC EPOXY COATING
Type of Cargo Heating System
HEATING COILS
Crude Oil Washing
YES
Inert Gas System
YES
Segregated Ballast Tanks
YES
No of Manifolds
6 x 14”
Type Of Manifolds
CAST STEEL BUTTERFLY
Distance Rail To Manifolds
4,600 Millimetres
Distance Bow To Manifolds
92.68 Metres
Distance Deck To Center Of Manifolds
2.1 mtrs
Manifold Height of sea level upon completion of discharging
11.27 mtrs
6 x
406/355mm
( 16/14")
3 x
406/305mm
(16/12")
5 x
355/305mm
(14/12")
4 x
355/355mm
(14/14")
5 x
355/254mm
(14/10")

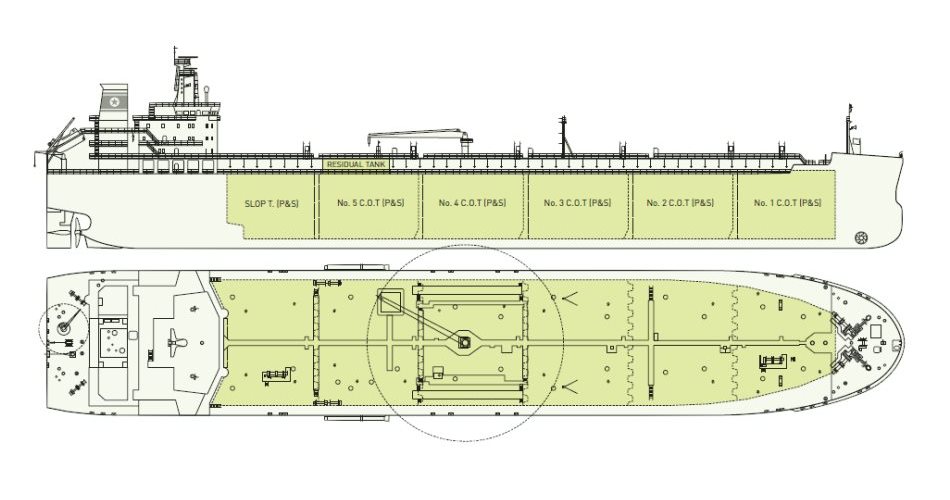

NUMBER OF CARGO OIL TANKS
5 WING CARGO OIL TANKS & 2 SLOP TANKS
NUMBER OF SEGREGATIONS
6
CARGO PUMPS
10 CENTRIFUGAL DW 500m3/HR
2 CENTRIFUGAL DW 300m3/HR
CENTRIFUGAL DW: 100m3/HR
RESIDUAL TANK PUMP
60 Cu. Metres/Hour
MAIN ENGINE
DMD MAN B8W 5S50MZ-BMK 9.2 Tier II
B.H.P.:
9250
TANK
CAPACITY100% m3
CAPACITY 98% m3
No 1 CARGO TANK (P)
2937.5
2878.8
No 1 CARGO TANK (S)
2924.6
2866.2
No 2 CARGO TANK (P)
4173.5
4090.1
No 2 CARGO TANK (S)
4173.5
4090.1
No 3 CARGO TANK (P)
4279.4
4193.9
No 3 CARGO TANK (S)
4279.4
4193.9
No 4 CARGO TANK (P)
4279.7
4194.2
No 4 CARGO TANK (S)
4279.7
4194.2
No 5 CARGO TANK (P)
4242.3
4157.5
No 5 CARGO TANK (S)
4242.3
4157.5
SLOP TANK (P)
3373.9
3306.5
SLOP TANK (S)
3373.9
3305.9
GRAND TOTAL
46559.7
45628.8
GROUP
TANKS
CAPACITY 100% m3
GROUP 1
1P&1S
5862.1
GROUP 2
2P&2S
8347.0
GROUP 3
3P&3S
8558.8
GROUP 4
4P&4S
8559.4
GROUP 5
5P&5S
8484.6
GROUP 6
SLOP P&S
6747.8
TOTAL CAPACITY BALLAST (m3)
17710.5
TOTAL CAPACITY FUEL OIL (m3)
1174.4
TOTAL CAPACITY DIESEL OIL (m3)
175.8
TOTAL CAPACITY FRESH WATER
398.1
TOTAL CAPACITY RESIDUAL
188.06
