THEANOULA

HVS 40K DWT

IMO 9935557

9935557
9935557
9935557
9935557
9935557
9935557
9935557
Vessel’s Name
THEANOULA
Vessel’s Classification Society
LLOYDS REGISTER
Vessel’s P&I Club
U.K. P&I CLUB
Flag
BAHAMAS
Port Of Registry
NASSAU
Owners
PHOENIX SEACARRIERS LTD
Managers
SUPER-ECO TANKERS MANAGEMENT INC.
Call Sign
C6FA7
IMO Number
9935557
Year Built
2022
Place Built
HYUNDAI VINASHIN SHIPYARD
Type Of Ship
CHEMICAL TANKER
Hull
DOUBLE HULL
Summer Deadweight
39855
Gross Tonnage
27452
Net Tonnage
9847
L.O.A.
183.21 mtrs
L.B.P.
174.00 mtrs
Beam
32,24 mtrs
Depth
16,80 mtrs
Summer Draft
10,516 mtrs
TPC
54,07 MT
Cubic Capacity Incl. Slops 98%
47,320.60 m3
Freeboard (S. DRAFT)
6,313 mtrs
Freeboard (SBT)
10.07 mtrs
Parallel Body Length (Light Condition)
67.32 mtrs
Keel To Mast
44.795 mtrs
Crane SWL
1 X 10 Tons
Tanks Coated
YES
Coating
PHENOLIC EPOXY COATING
Type of Cargo Heating System
HEATING COILS
Crude Oil Washing
YES
Inert Gas System
YES
Segregated Ballast Tanks
YES

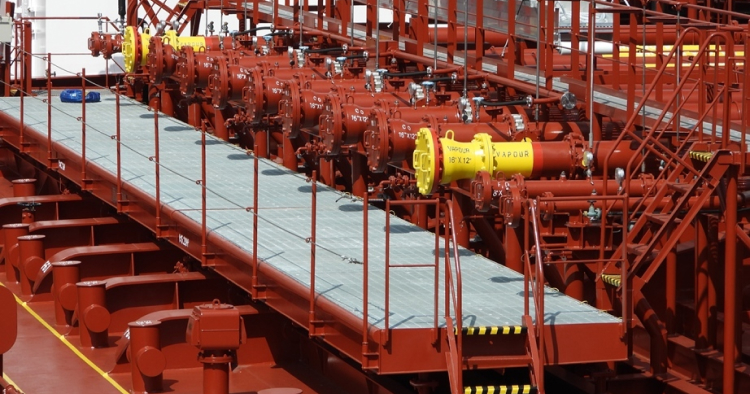

No of Manifolds
6 x 16”
Type Of Manifolds
CAST STEEL BUTTERFLY
Distance Rail To Manifolds
4,432 Millimetres
Distance Bow To Manifolds
91.37 Metres
Distance Deck To Center Of Manifolds
2.1 mtrs
Manifold Height of sea level upon completion of discharging
12.243 mtrs
6X
254/305mm
(10/12")
13 x
406/305mm
(16/12")
7 x
355/203mm
(14/8")
6 x
305/305mm
(12/12")
2 x
305/355mm
(12/14")
NUMBER OF CARGO OIL TANKS
6 WING CARGO OIL TANKS & 2 SLOP TANKS + Residual Tank
NUMBER OF SEGREGATIONS
7
CARGO PUMPS
12 CENTRIFUGAL DW 500m3/HR
2 CENTRIFUGAL DW 200m3/HR
MAIN ENGINE
HYUNDAI-MAN B&W 6S50ME-C9.7-HPSCR
B.H.P.
10594
No 1 CARGO TANK (P)
3329.5
3262.9
No 1 CARGO TANK (S)
3344.4
3277.5
No 2 CARGO TANK (P)
4124.9
4042.4
No 2 CARGO TANK (S)
4126.4
4043.8
No 3 CARGO TANK (P)
4157.2
4074.0
No 3 CARGO TANK (S)
4158.6
4075.4
No 4 CARGO TANK (P)
4157.2
4074.0
No 4 CARGO TANK (S)
4158.6
4075.4
No 5 CARGO TANK (P)
4152.7
4069.7
No 5 CARGO TANK (S)
4154.2
4071.1
No 6 CARGO TANK (P)
3711.2
3637.0
No 6 CARGO TANK (S)
3710.3
3636.1
SLOP TANK (P)
586.2
574.5
SLOP TANK (S)
413.1
404.9
GRAND TOTAL
48284.5
47318.7
GROUP 1
1P&1S
6673.90
GROUP 2
2P&2S
8251.30
GROUP 3
3P&3S
8315.80
GROUP 4
4P&4S
8315.80
GROUP 5
5P&5S
8306.90
GROUP 6
6P&6S
7421.50
GROUP 7
SLOP P&S 999.30
TOTAL CAPACITY BALLAST (m3)
21604.50
TOTAL CAPACITY FUEL OIL (m3)
1264.10
TOTAL CAPACITY DIESEL OIL (m3)
288.90
TOTAL CAPACITY FRESH WATER
223.60
TOTAL CAPACITY RESIDUAL (m3)
162.80
