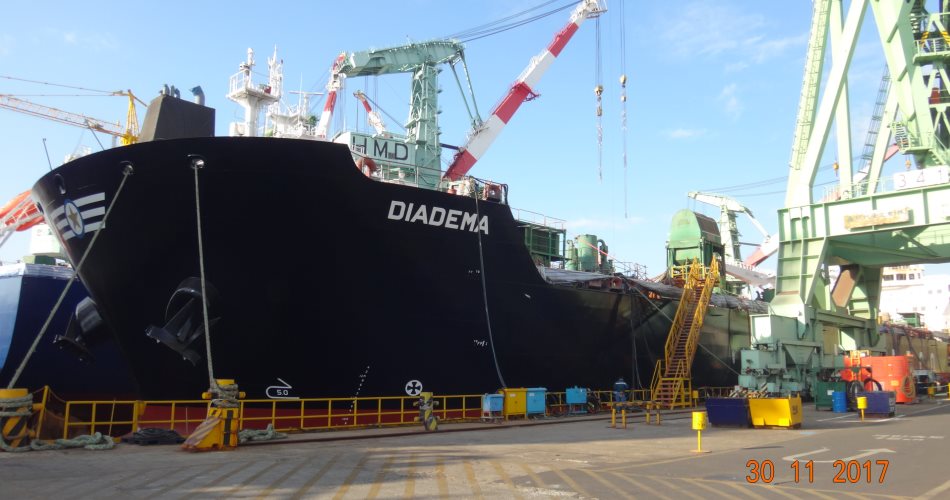

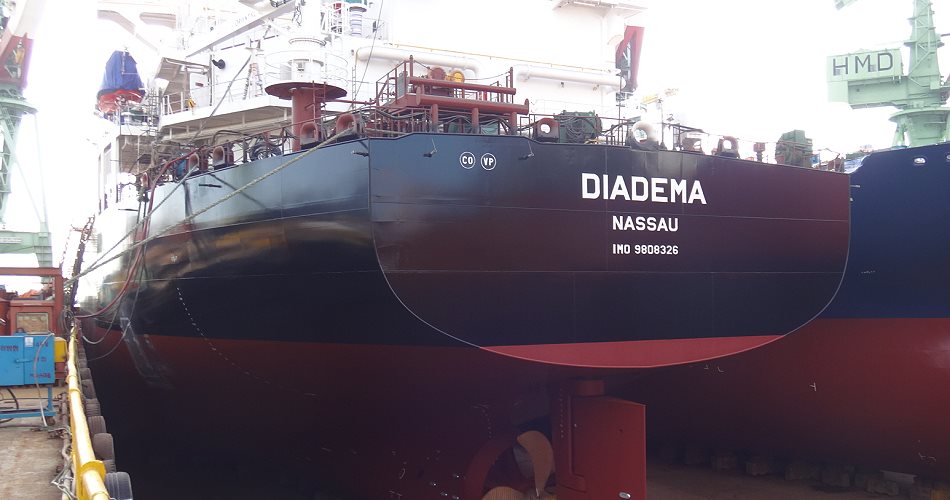

DIADEMA

HMD 40K DWT

IMO 9808326

9808326
9808326
9808326
9808326
9808326
9808326
9808326
9808326
Vessel’s Name
DIADEMA
Vessel’s Classification Society
LR
Vessel’s P&I Club
U.K. P&I CLUB
Flag
BAHAMAS
Port Of Registry
NASSAU
Owners
KINGBIRD NAVIGATION INC.
Managers
SUPER-ECO TANKERS MANAGEMENT INC.
Call Sign
C6CU3
IMO Number
9808326
Year Built
2018
Place Built
HYUNDAI MIPO DOCKYARD
Type Of Ship
IMO II/III CHEMICAL TANKER
Hull
DOUBLE HULL
Summer Deadweight
40019
Gross Tonnage
26458
Net Tonnage
10096
L.O.A.
183.06 mtrs
L.B.P.
174.00 mtrs
Beam
32,23 mtrs
Depth
16,32 mtrs
Summer Draft
10.516 mtrs
TPC
55,10 MT
Cubic Capacity Incl. Slops 98%
44,652 m3
Freeboard (S. DRAFT)
5.813 mtrs
Freeboard (SBT)
9.68 mtrs
Parallel Body Length (Light Condition)
70.40 mtrs
Keel To Mast
46.34 mtrs
Crane SWL
1 X 10 Tons
Tanks Coated
YES
Coating
NOVOLAC PHENOLIC EPOXY
Type of Cargo Heating System
HEATING COILS
Crude Oil Washing
YES
Inert Gas System
YES
Segregated Ballast Tanks
YES
No of Manifolds
6 x 305 mm
Type Of Manifolds
CARBON STEEL BUTTEFLY
Distance Rail To Manifolds
4,600 Millimetres
Distance Bow To Manifolds
90.02 Metres
Distance Deck To Center Of Manifolds
2.1 mtrs
Manifold Height of sea level upon completion of discharging
11.51 mtrs
6 x
254/305mm
(10/12")
13 x
406/305mm
(16/12")
7 x
355/203mm
(14/8")
6 x
305/305mm
(12/12")
2 x
305/355mm
(12/14")

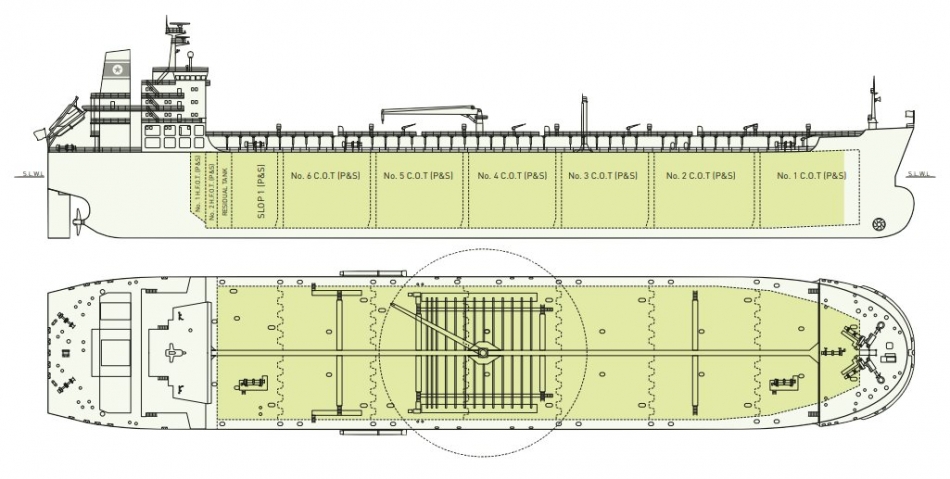

NUMBER OF CARGO OIL TANKS
6 PAIRS CARGO OIL TANKS & 2 SLOP TANKS & 1 RESIDUAL TANK
NUMBER OF SEGREGATIONS
6
CARGO PUMPS
12 CENTRIFUGAL DW 500m3/HR
2 CENTRIFUGAL DW 200m3/HR
RESIDUAL TANK PUMP
70 Cu. Metres/Hour
MAIN ENGINE
MAN B&W 6S50ME-C9.5 (TIER II)
B.H.P.
11167
TANK
CAPACITY 100% m3
CAPACITY 98% m3
NO.1 CARGO TANK (P)
3199.6
3135.6
NO.1 CARGO TANK (S)
3214.1
3149.8
NO.2 CARGO TANK (P)
3978.9
3899.4
NO.2 CARGO TANK (S)
3979.8
3900.2
NO.3 CARGO TANK (P)
4010.0
3929.8
NO.3 CARGO TANK (S)
4011.3
3931.1
NO.4 CARGO TANK (P)
4010.0
3929.8
NO.4 CARGO TANK (S)
4011.3
3931.1
NO.5 CARGO TANK (P)
4005.6
3925.4
NO.5 CARGO TANK (S)
4006.9
3926.8
NO.6 CARGO TANK (P)
3569.7
3498.3
NO.6 CARGO TANK (S)
3568.7
3497.3
SLOP TANK (P)
560.1
548.9
SLOP TANK (S)
388.7
380.9
TOTAL
46514.7
45584.4
GROUP
TANKS
CAPACITY 100% m3
GROUP1
1P&1S
6413.7
GROUP2
2P&2S
7958.7
GROUP3
3P&3S
8021.3
GROUP4
4P&4S
8021.3
GROUP5
5P&5S
8012.5
GROUP6
6P&6S
7138.4
GROUP7
SLOP P&S
948.8
TOTAL CAPACITY BALLAST (m3)
21018.60
TOTAL CAPACITY FUEL OIL (m3)
1223.50
TOTAL CAPACITY DIESEL OIL (m3)
113.00
TOTAL CAPACITY FRESH WATER
211.20
TOTAL CAPACITY RESIDUAL (m3)
152.40
