ALTAIR

DAESUN 50K DWT

IMO 9797254

9797254
9797254
9797254
9797254
9797254
9797254
Vessel’s Name
ALTAIR
Vessel’s Classification Society
LR
Vessel’s P&I Club
U.K. P&I CLUB
Flag
BAHAMAS
Port Of Registry
NASSAU
Owners
SCARLET NAVIGATION INC.
Managers
SUPER-ECO TANKERS MANAGEMENT INC.
Call Sign
C6CT9
IMO Number
9797254
Year Built
2017
Place Built
DAESUN SHIPBUILDING & ENGINEERING CO., LTD. BUSAN, KOREA
Type Of Ship
IMO II/III CHEMICAL TANKER
Hull
DOUBLE HULL
Summer Deadweight
50582,7
Gross Tonnage
30285
Net Tonnage
13885
L.O.A.
183.10
L.B.P.
174.00
Beam
32.20
Depth
19.10
Summer Draft
13.316
TPC
52.50
Cubic Capacity Incl. Slops 98%
53126
Freeboard (S. DRAFT)
5.813
Freeboard (SBT)
12.41
Parallel Body Length (Light Condition)
62.08
Keel To Mast
47.90
Crane SWL
1 X 10 Tons
Tanks Coated
YES
Coating
NOVOLAC PHENOLIC EPOXY
Type of Cargo Heating System
HEATING COILS
Crude Oil Washing
YES
Inert Gas System
YES
Segregated Ballast Tanks
YES
No of Manifolds
6 x 406
Type Of Manifolds
CARBON STEEL BUTTEFLY
Distance Rail To Manifolds
4,600 Millimetres
Distance Bow To Manifolds
90.382 Metres
Distance Deck To Center Of Manifolds
2.1 mtrs
Manifold Height of sea level upon completion of discharging
11.90 mtrs
6 x
300/300mm
(12/12")
6 x
300/250mm
(12/10")
6 x
300/200mm
(12/8")
1 x
200/300mm
(8/12")
1 x
200/250mm
(8/10")

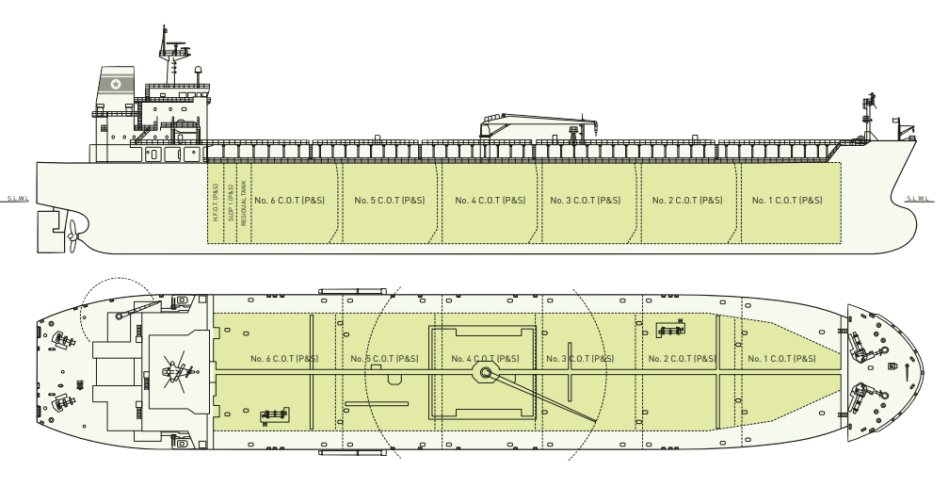

NUMBER OF CARGO OIL TANKS
6 PAIRS CARGO OIL TANKS & 2 SLOP TANKS & 1 RESIDUAL TANK
NUMBER OF SEGREGATIONS
6
CARGO PUMPS
12 CENTRIFUGAL DW 500m3/HR
2 CENTRIFUGAL DW 200m3/HR
RESIDUAL TANK PUMP
80 Cu. Metres/Hour
MAIN ENGINE
MAN B&W 6S50ME-C9.5 (TIER II)
B.H.P.
9555
TANK
CAPACITY 100% m3
CAPACITY 98% m3
NO.1 CARGO TANK (P)
3307.523
3241.37
NO.1 CARGO TANK (S)
3311.418
3245.19
NO.2 CARGO TANK (P)
4588.211
4496.45
NO.2 CARGO TANK (S)
4572.622
4481.17
NO.3 CARGO TANK (P)
696.476
4602.55
NO.3 CARGO TANK (S)
4684.997
4591.30
NO.4 CARGO TANK (P)
4698.449
4604.48
NO.4 CARGO TANK (S)
4685.309
4591.60
NO.5 CARGO TANK (P)
4700.936
4606.92
NO.5 CARGO TANK (S)
4683.930
4590.25
NO.6 CARGO TANK (P)
4548.884
4457.91
NO.6 CARGO TANK (S)
4536.779
4446.04
SLOP TANK (P)
529.594
519
SLOP TANK (S)
665.000
651.70
TOTAL
54210.128
53125.93
GROUP
TANKS
CAPACITY 100% m3
GROUP1
1P&1S
6618.94
GROUP2
2P&2S
9160.83
GROUP3
3P&3S
9381.47
GROUP4
4P&4S
9383.76
GROUP5
5P&5S
9384.87
GROUP6
6P&6S
9085.66
GROUP7
SLOP P&S
1194.59
TOTAL CAPACITY BALLAST (m3)
21693.91
TOTAL CAPACITY FUEL OIL (m3)
1377.84
TOTAL CAPACITY DIESEL OIL (m3)
150.07
TOTAL CAPACITY FRESH WATER
368.27
TOTAL CAPACITY RESIDUAL (m3)
146.42
